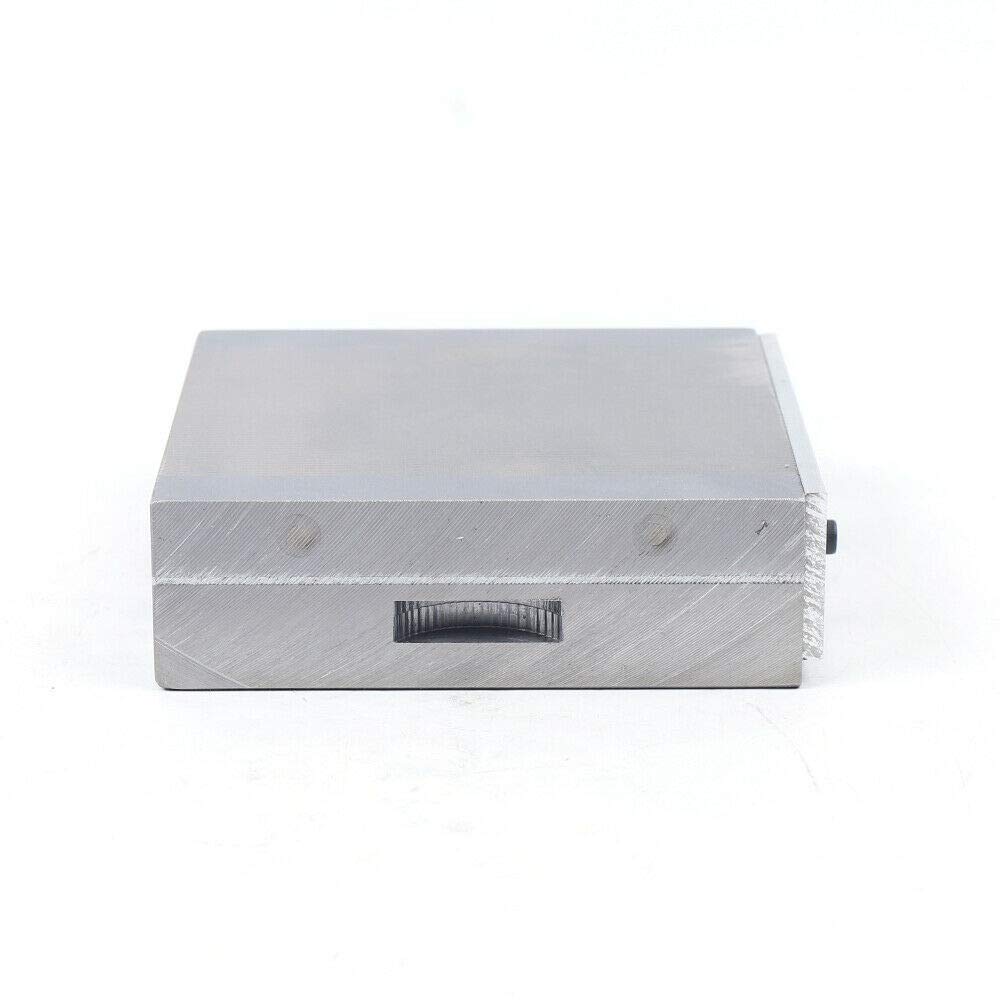

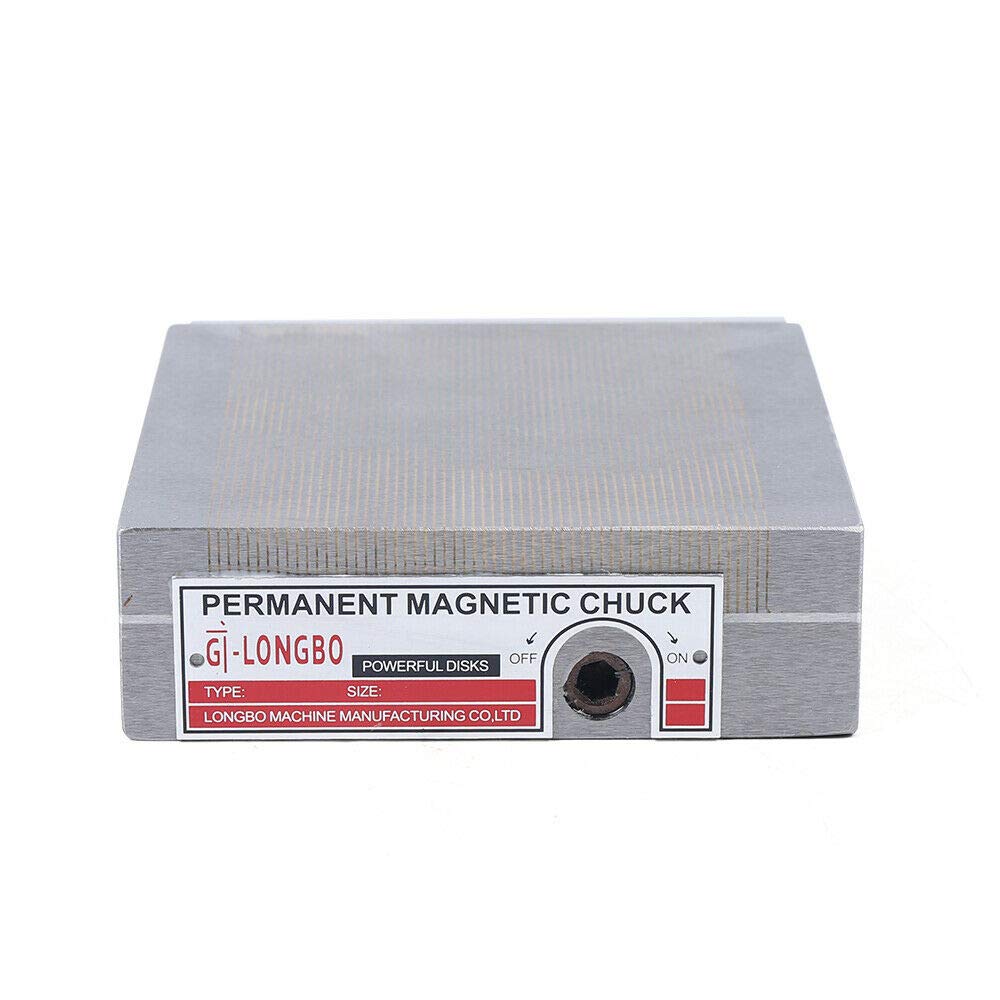

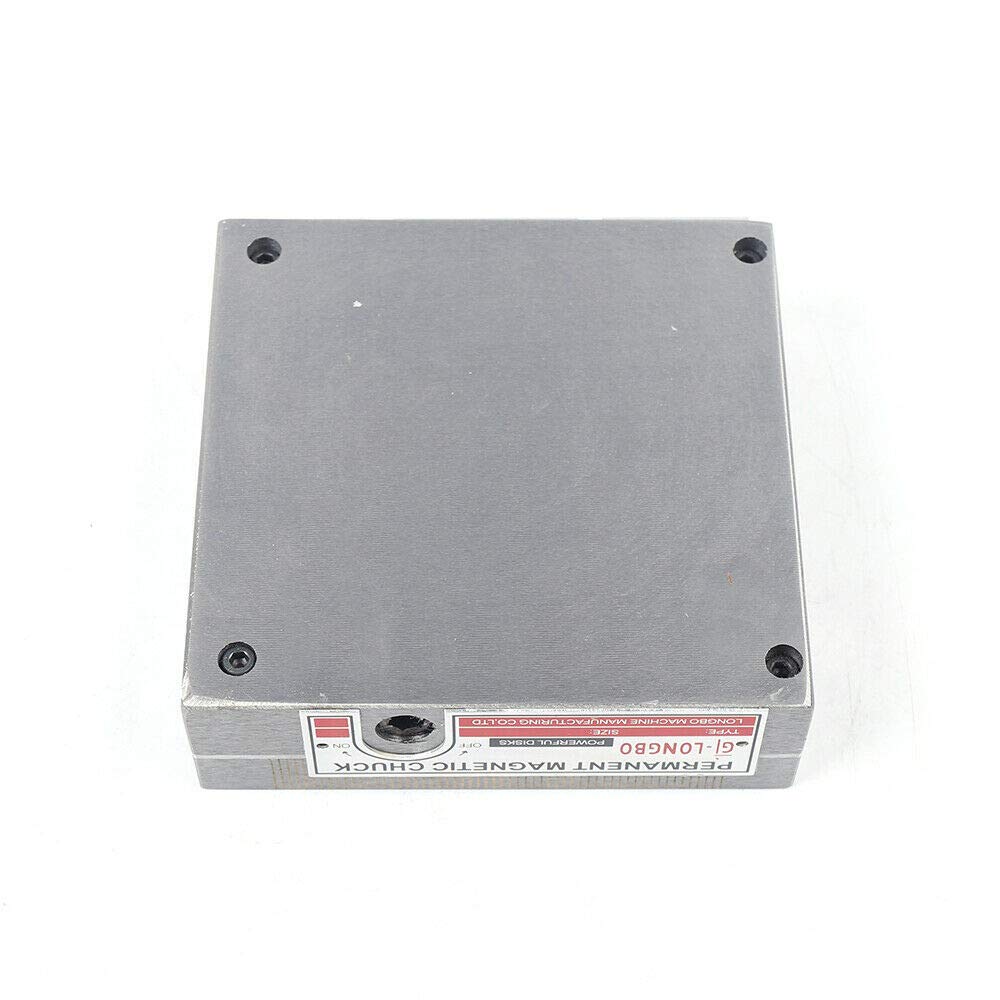

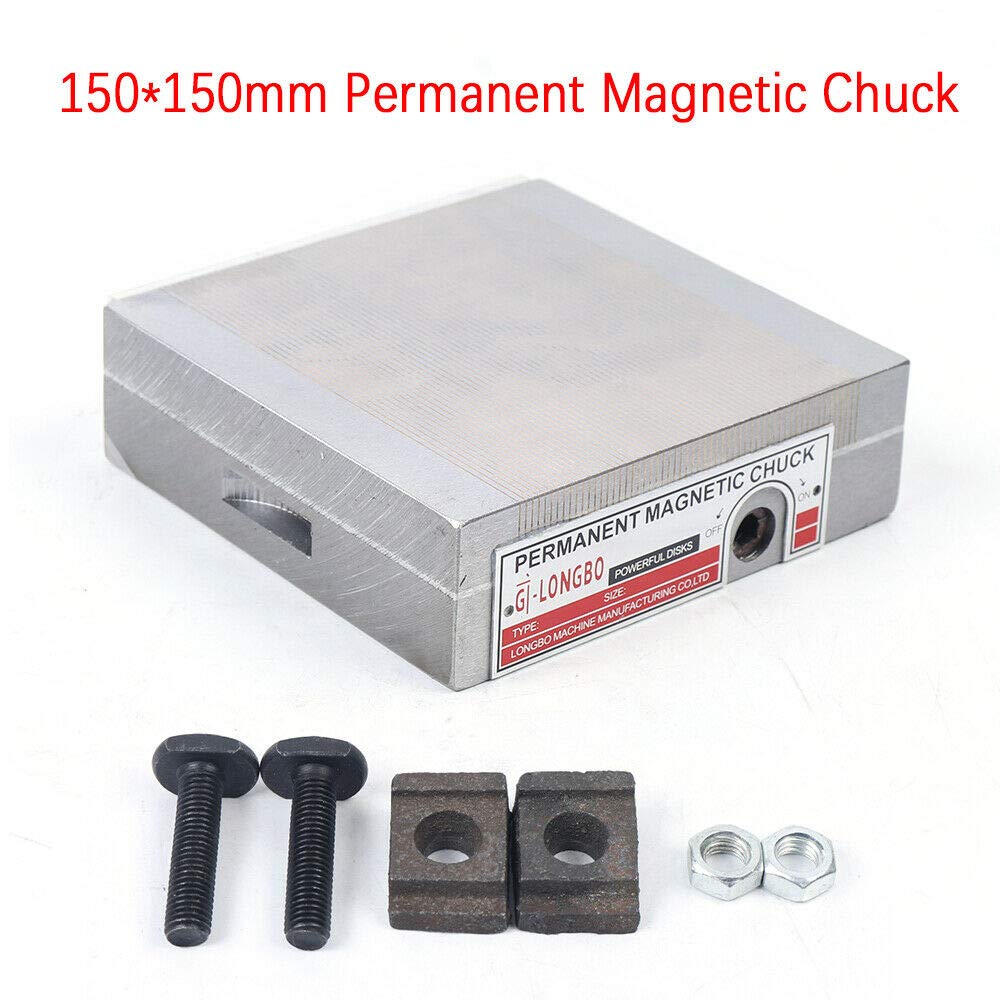

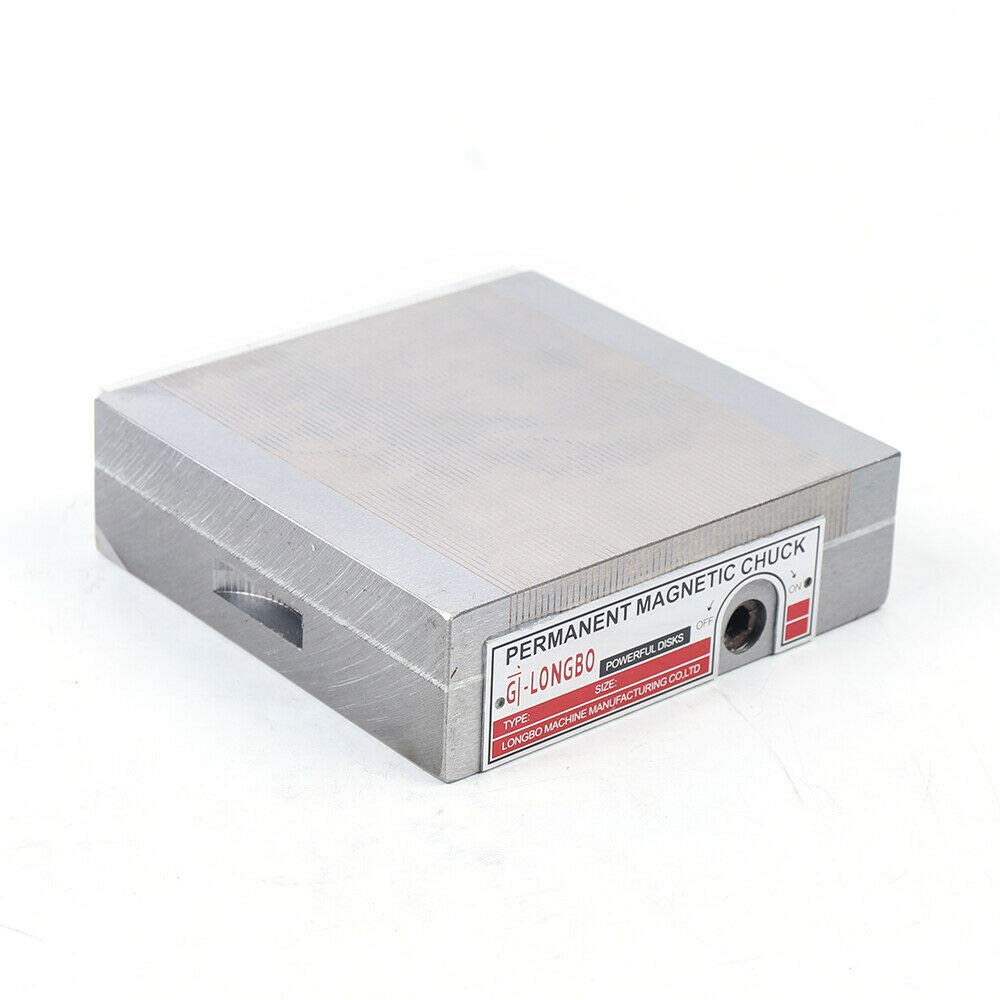

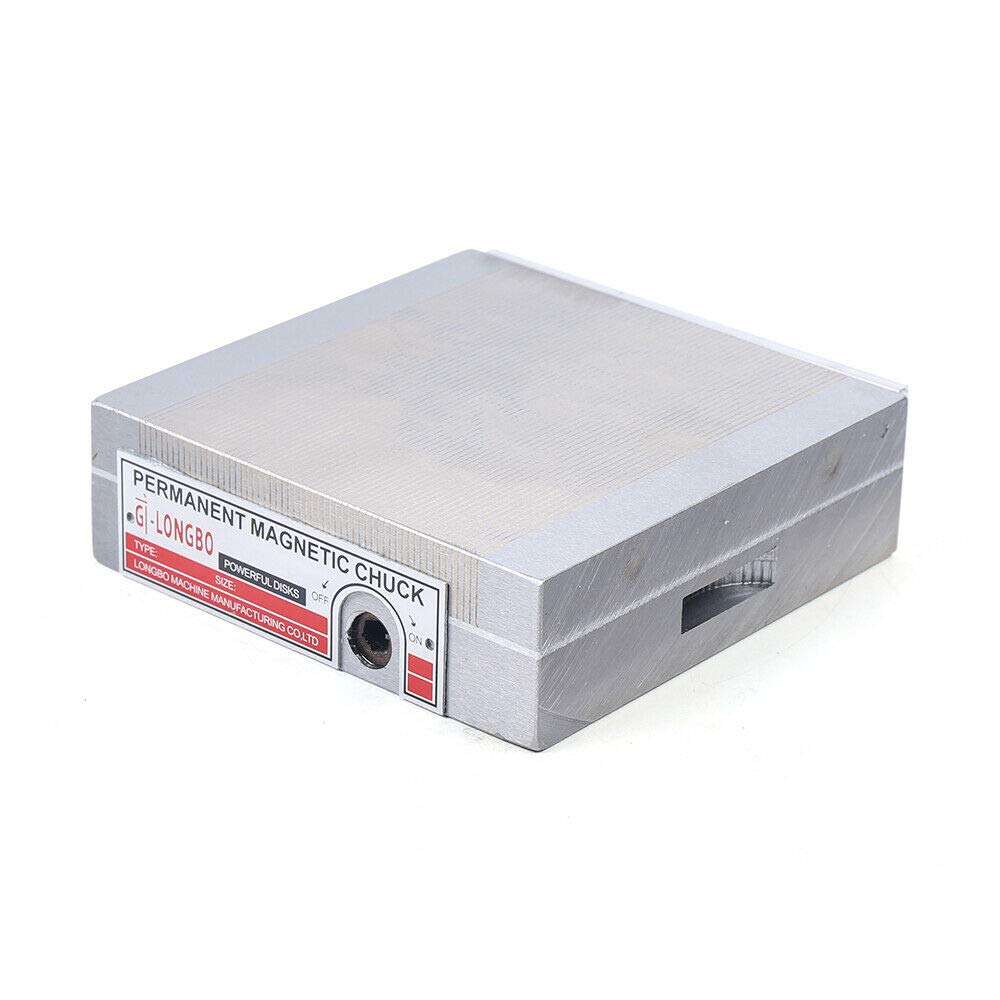

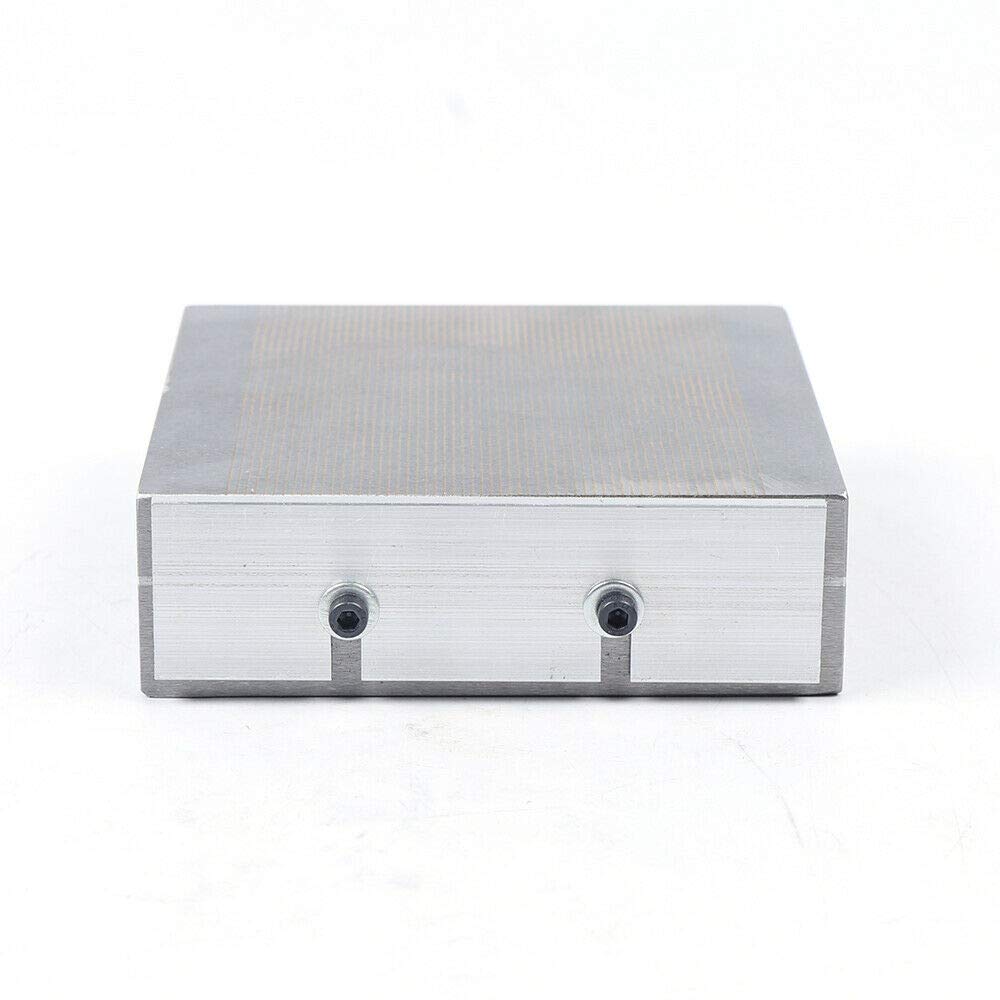

6"x6" Fine Pole Permanent Magnetic Chuck for Grinding & EDM - Uniform Magnetic Force, Square Design with Handle - Perfect for Bench Drill & Line Cutting Workstations

DescriptionSpecifications: Model: 150 * 150mm(6”x6”)Chuck height: 45mmPole pitch: 0.5+1.5mm（2mm）Copper strip length: 110mmCopper strip height: 20mmItem Weight approx: 9kgFeatures: Applicable to grinding machines, EDM EDM, line cutting, tapping machines, bench drill and other processing. Magnetic pole gap fine, uniform magnetic force, small workpiece processing, the effect is particularly evident. Internal special design, can extend the service life. The main structure is stable, high precision. With industrial pure iron test, the vertical tension up to 100-120N/cm2. Tungsten steel, hard alloy steel and other magnetic small workpieces are not suitable for magnetic sucker.Packages: 1 x Magnetic Chuck

Better Magnetic Force -- Magnetic pole gap fine, uniform magnetic force, small workpiece processing, the effect is particularly evident.

High Precision -- Internal special design, can extend the service life. The main structure is stable, high precision.

Vertical Tension -- With industrial pure iron test, the vertical tension up to 100-120N/cm2.

Specifications -- Model 150 * 150mm(6”x6”); Chuck height 45mm; Pole pitch 0.5+1.5mm（2mm); Copper strip length 110mm; Copper strip height 20mm; Item Weight approx 9kg.

Wide Application -- Applicable to grinding machines, EDM EDM, line cutting, tapping machines, bench drill and other processing. Tungsten steel, hard alloy steel and other magnetic small workpieces are not suitable for magnetic sucker.
