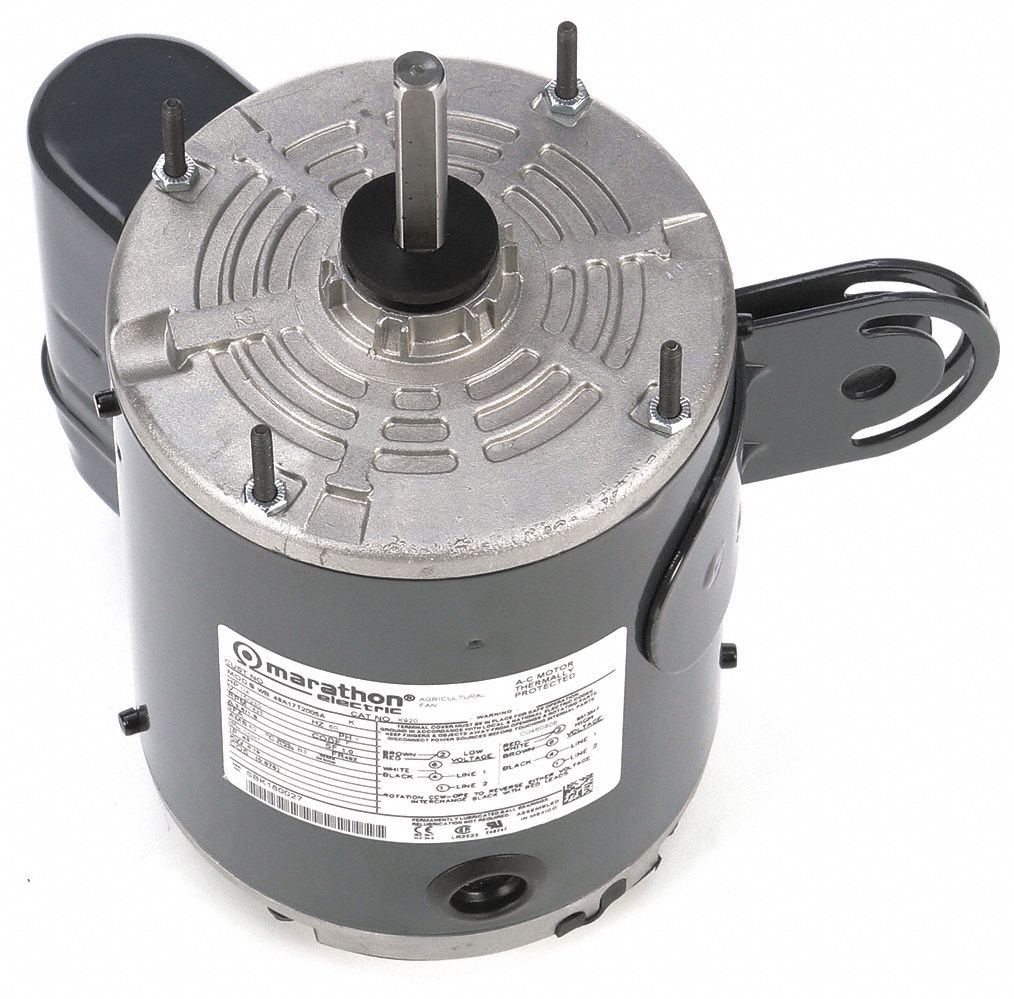

048A17T2005 1/4 HP Pedestal Fan Motor by Marathon Electric | Permanent Split Capacitor | 1625 RPM | 115/230V | Frame 48Z | Ideal for Industrial Cooling & Ventilation Systems

Item: Pedestal Fan Motor Motor design: split permanent capacitor. Phase: 1. HP:1/4 RPM Range: 1001-1100 No. of speeds: 1. Voltage: 115/230 Motor shaft rotation: CW/CCW Frame: 48Z Engine Box Design: Fully Enclosed, Not Vented Motor Mount Type: Yoke Shaft Diameter:1/2" Shaft Length: 2-9/16" Motor thermal protection: automatic. 3m cable and pull chain switch: no. RPM nameplate: 1625 Engine Application: HVAC/R Motor submotor application: pedestal fan. Full load amps: 3.6/1.8 Hz: 60 Engine Service Factor: 1.00 Max. Room temperature. : 40 degrees C Ins. Class B. Operation: Continuous. Motor Bearings: Ball Body Diameter: : 5-3/4" Overall Length:10-9/16" Motor shaft design: double plane. Application: pedestal fan. Capacitor required: included. Standards: UL recognized (E6312), CSA (LR2025) certified. Manufacturer warranty length: 1 year.
