High Torque Permanent Magnet DC Gear Motor - 12V/24V Reduction Gear Motor for Robotics, Conveyors & Industrial Automation

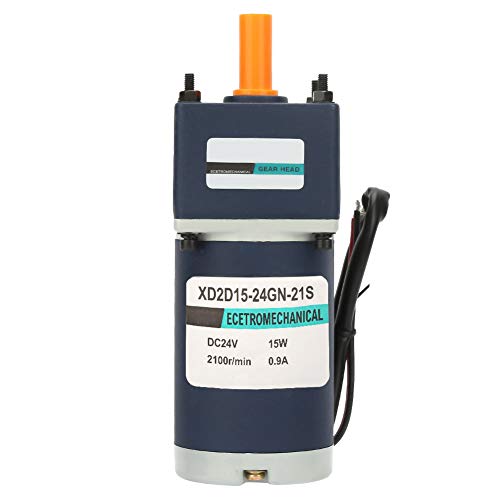

Features: A gear motor is a specific type of electrical motor that is designed to produce high torque. Supporting clockwise and counterclockwise rotation. Using pure copper coil for smooth running and long service life. Metal gear with good wear resistance can provide large transmission torque. Widely applicable for automatic machinery, small scale assembly line, food machinery, packaging machinery and more. Specification: Model: XD2D15-24GN-21S Voltage: 24V Power: 15W Motor no-load speed: 2100RPM Motor no-load current: 0.4A Motor load speed: 1800RPM Motor load current: 0.5A Output shaft speed: 700RPM, 420RPM, 280RPM, 210RPM, 170RPM, 140RPM, 120RPM, 100RPM, 85RPM, 70RPM, 60RPM, 40RPM, 35RPM, 30RPM, 20RPM, 15RPM, 12RPM, 10RPM ( Optional ) Torque: 0.5 kg.cm Insulation class: Class B Motor size: 60*60*130mm/ 2.4*2.4*5.1in Output shaft size: 8*27mm/ 0.3*1.1in Package list: 1 x Gear Motor

A gear motor is a specific type of electrical motor that is designed to produce high torque.

Using pure copper coil for smooth running and long service life.

Supporting clockwise and counterclockwise rotation.

Widely applicable for automatic machinery, small scale assembly line, food machinery, packaging machinery and more.

Metal gear with good wear resistance can provide large transmission torque.
