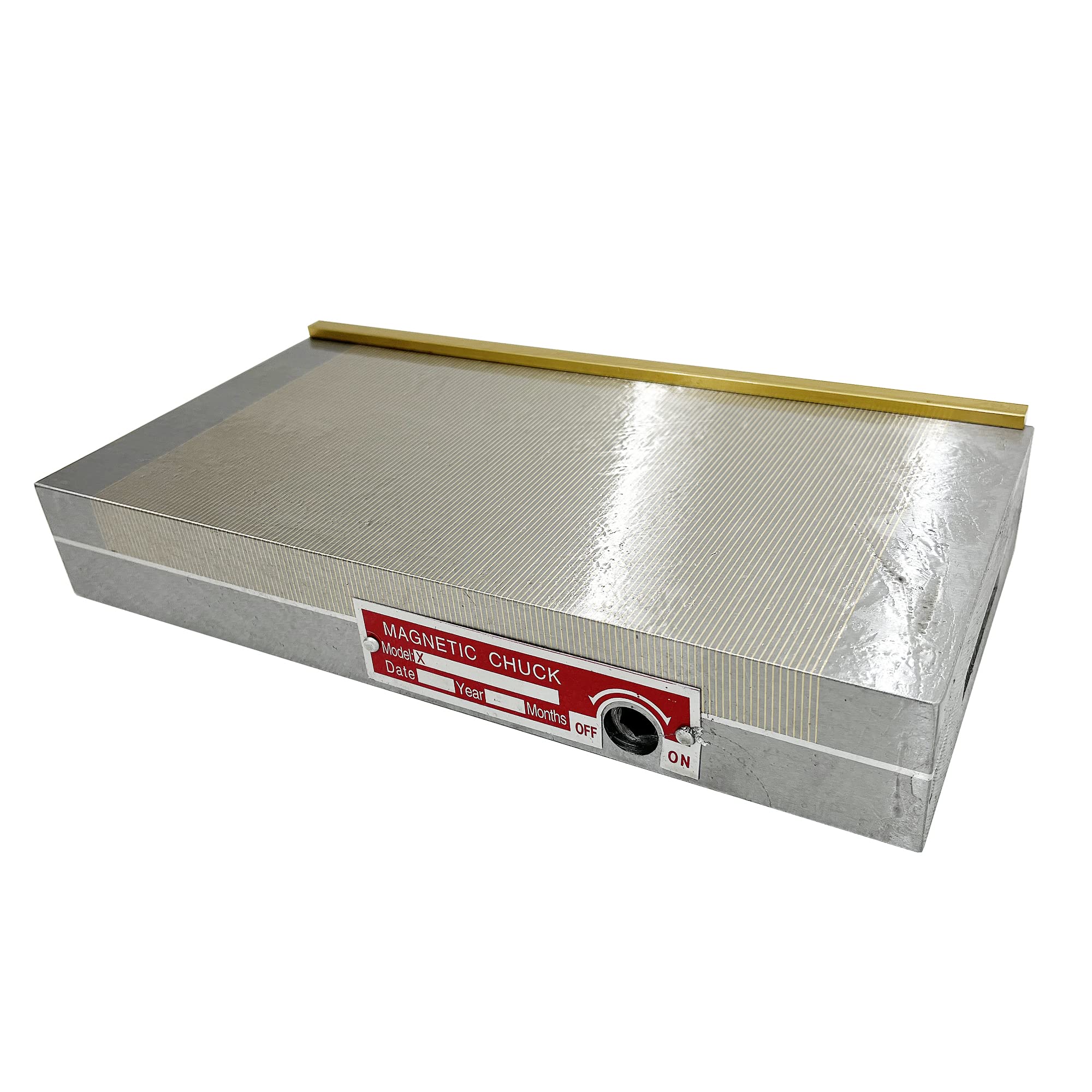

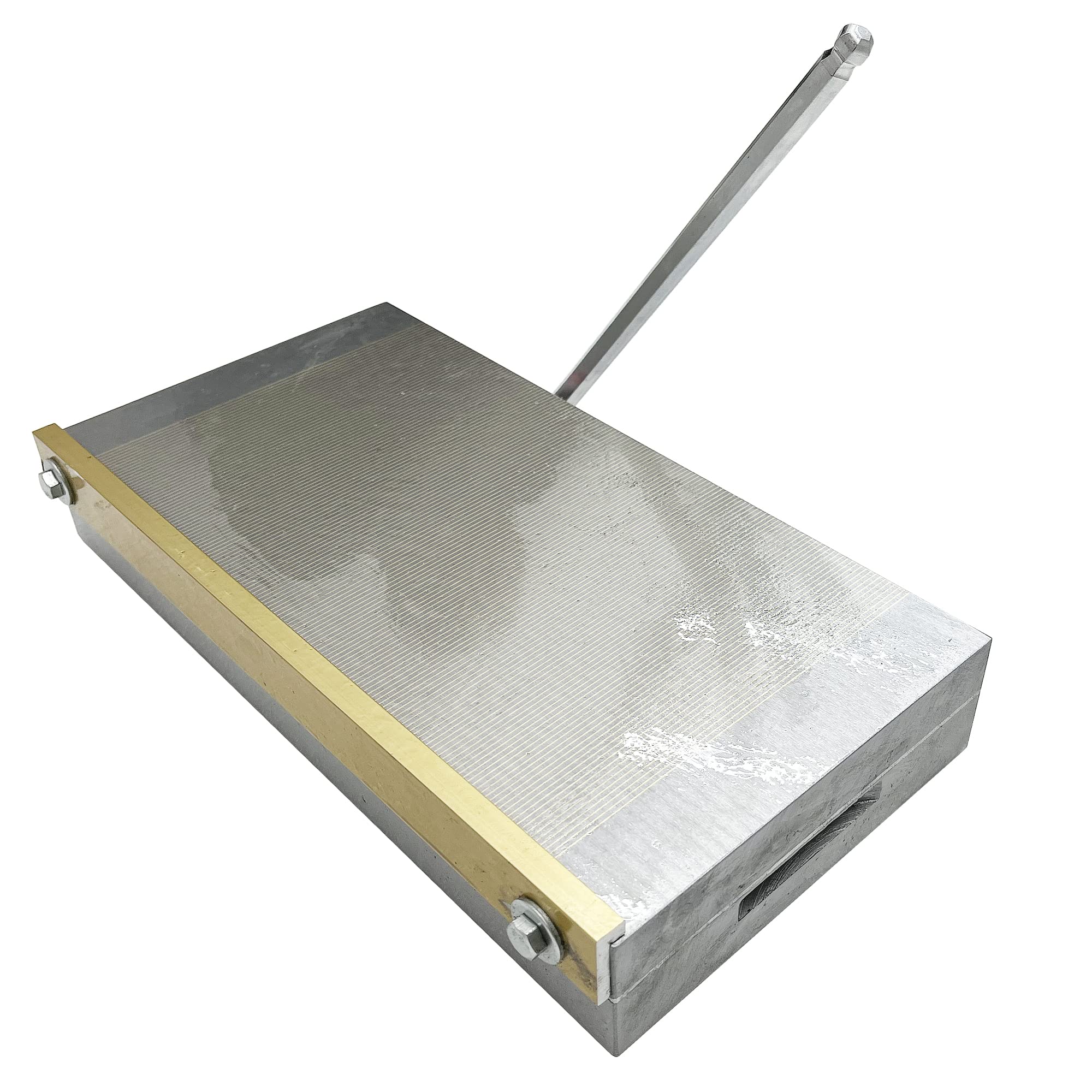

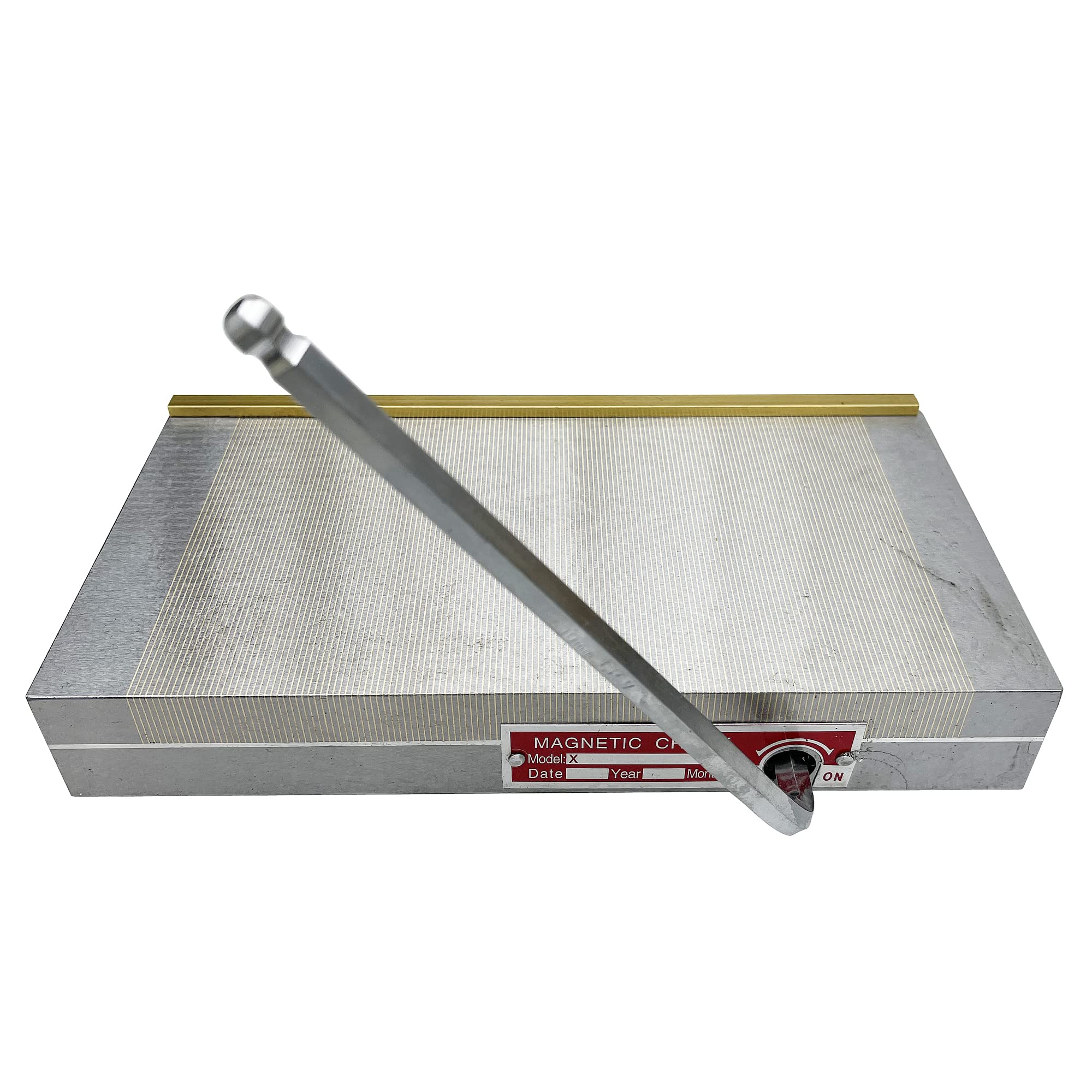

INTBUYING 6x12 Inch Fine Pole Permanent Magnetic Chuck - 100-120N/cm2 Powerful Sealed Rectangular Chuck for Grinding Machine, Milling & CNC Workholding | Perfect for Metal Grinding, Machining & Precision Work in Workshops

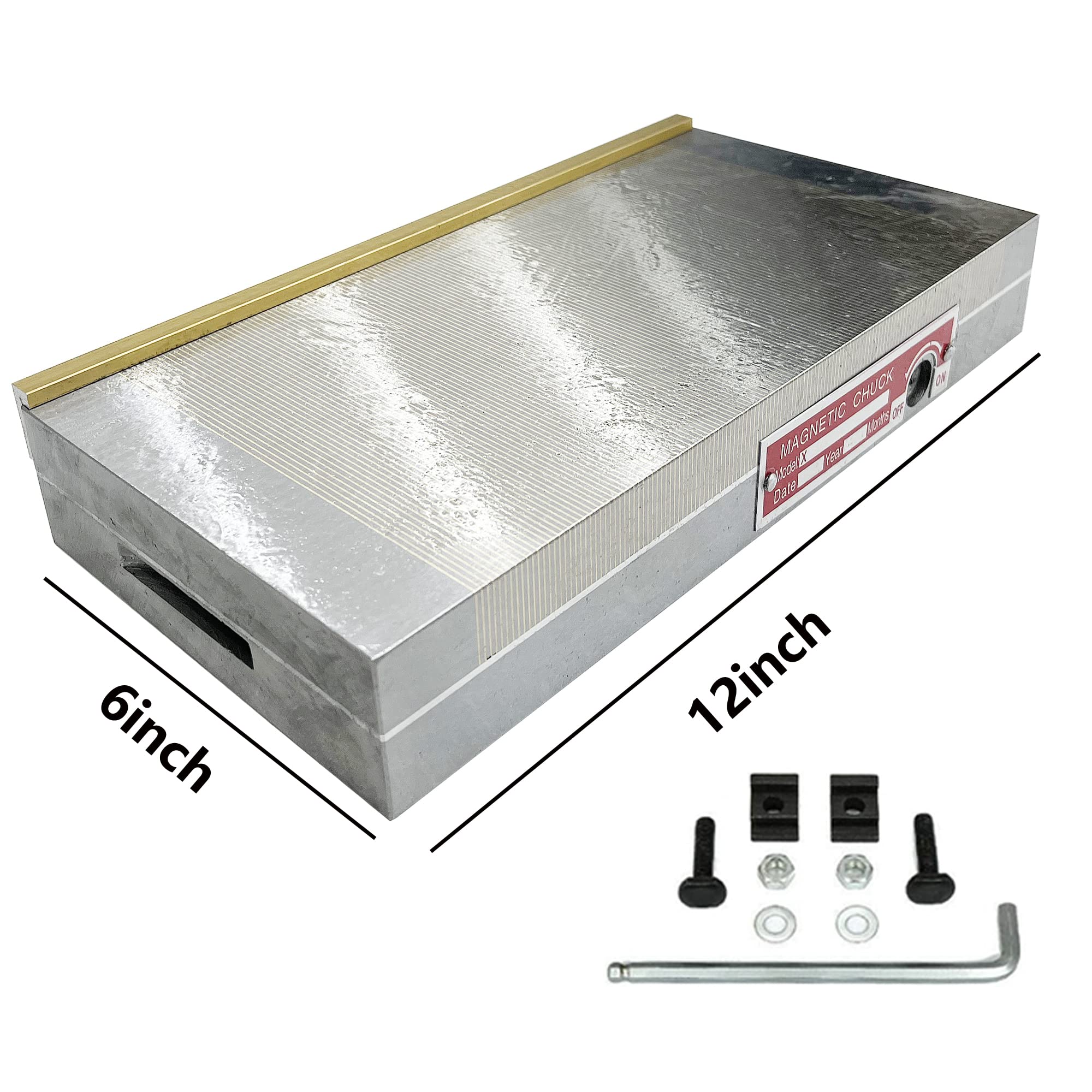

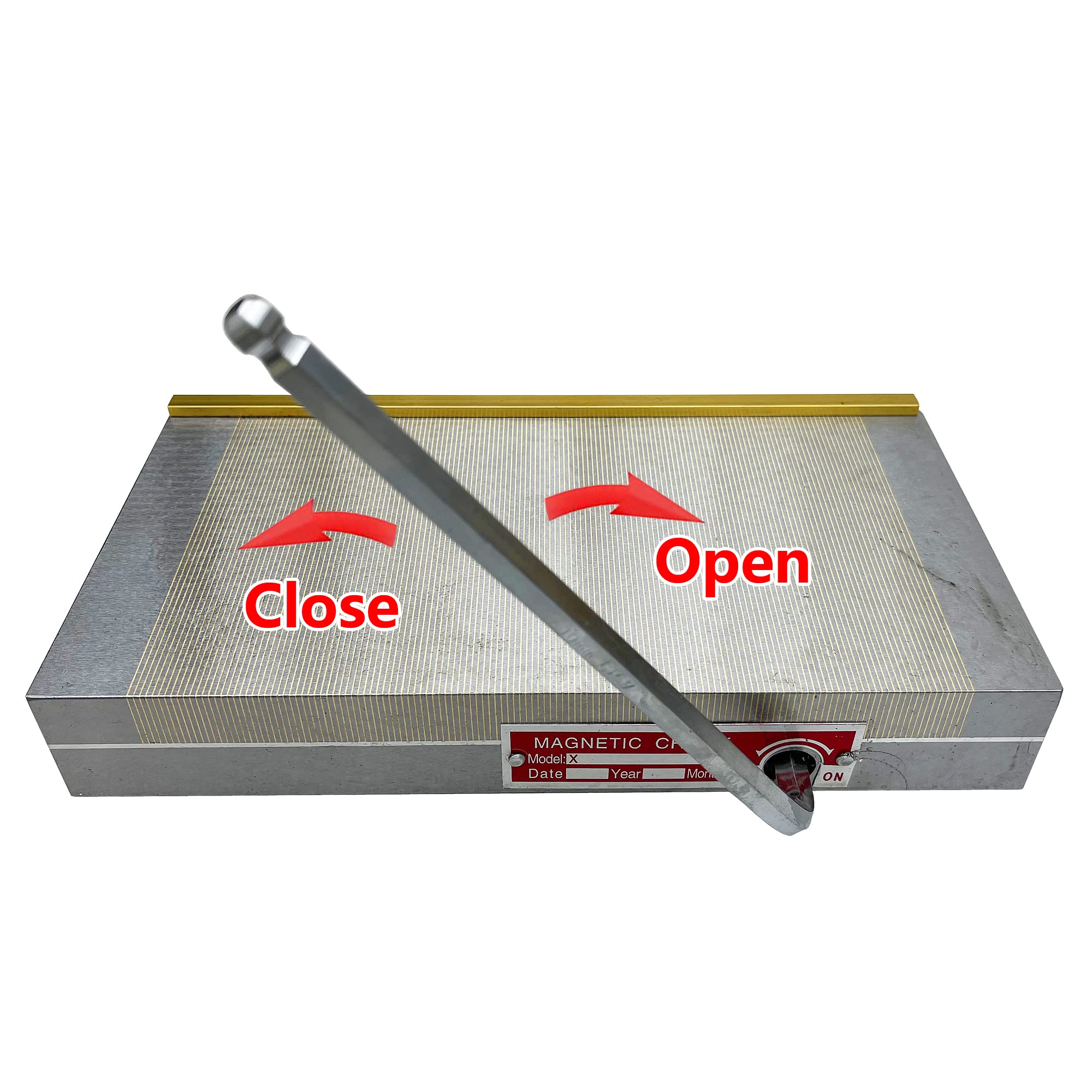

Permanent Magnetic Chuck, 6x12in Rectangular Fine Pole Magnetic Chuck for Grinding Milling Lathe Workholding Strong dense pole permanent magnet sucker is for surface grinder, sparks machine, WEDM. Very fine spacing, uniform magnetic distribution, particularly for processing small thin parts. Operation of Permanent Magnetic Chuck Put the workpiece on the suction table, and then insert the wrench into the shaft hole to turn clockwise180°, the workpiece can be sucked for processing.The workpiece is completed, the wrench can be inserted into the shaft hole to turn counterclockwise 180 °, you can remove the workpiece. 6x12inch Rectangular Fine Pole Magnetic Chuck High performance magnetic steel disc, with suction, almost no remanence. The suction is 100N/cm². To prolong service life of the disk, can be placed on the cutting fluid to storage.Six-surface fine grinding processing, the sucker can be used in vertical direction on the wire cutting machine cutting. Suction up to 100N/CM² Magnet Material N45 magnet material with safety factor of 3.5 Size 6x12 inch(15x30cm) Use of ambient temperature -40 ℃ to 50 ℃ Pole Pitch 1.5+0.5mm (copper bar) Item Dimensions 150x300x45mm/6x12x1.77in Accessories Two screws, Two screw pressing plates, A stainless steel handle Net Weight 34lbs Included: 6x12in Fine Pole Permanent Magnetic Chuck for Grinding Machine(170425) Panel with special treatment, no leakage, to prevent corrosion of cutting fluid. To prolong service life of the disk, it can be placed on the cutting fluid for storage. To prolong service life of the disk, it can be placed on the cutting fluid for storage. After using, the surface should be coated with oil to prevent corrosion. Do not knock, to prevent magnetic reduction. Other Sizes of Permanent Magnetic Chuck 6×6inch Magnetic Chuck 6×18inch Magnetic Chuck 10×20inch Magnetic Chuck Size 6x6in(150x150mm) Size 6x18inch(150x450mm) Size 10x20 inch(250x500mm) Material N45 Neodymium Magnets Material N45 Neodymium Magnets Material N45 Neodymium Magnets Use of ambient temperature -40 ℃ to 50 ℃ Use of ambient temperature -40 ℃ to 50 ℃ Use of ambient temperature -40 ℃ to 50 ℃ Shipping size 9.06x7.68x2.56in Shipping size Shipping size Suitable for surface grinder, sparks machine, WEDM Circular Magnetic Chuck Permanent Magnetic Sine Plate Square CNC Magnetic Chuck Size Diameter 6.3inch (160mm) Size 6×6inch (15x15cm) Size 12×12x3 inch Material N45 Neodymium Magnets Material high quality magnetic material Material Use powerful rare earth ceramic magnets inside Use of ambient temperature -40 ℃ to 50 ℃ Use of ambient temperature -40 ℃ to 50 ℃ Use of ambient temperature -40 ℃ to 50 ℃ Shipping size 8.66x8.27x4.72in Shipping size 10.24x9.06x6.10in Shipping size 17.72x14.57x7.48in

【Uniform Strong Magnetic Force】We use N45 Magnet with a safety factor of 3.5 to provide super strong magnetism for you. Magnetic force is 100-120 N/cm2. Very fine spacing, uniform magnetic distribution, particularly for processing small thin parts.

【High Quality Material】This magnetic lifter is made with neodymium magnets. Our N45 magnet is more reliable, last longer and can attach tightly. Use of ambient temperature is about -40℃ to 50 ℃.

【High-Performance】Panel with special treatment, no leakage, to prevent corrosion of cutting fluid. Six-surface fine grinding processing, the sucker can be used in vertical direction on the wire cutting machine cutting.

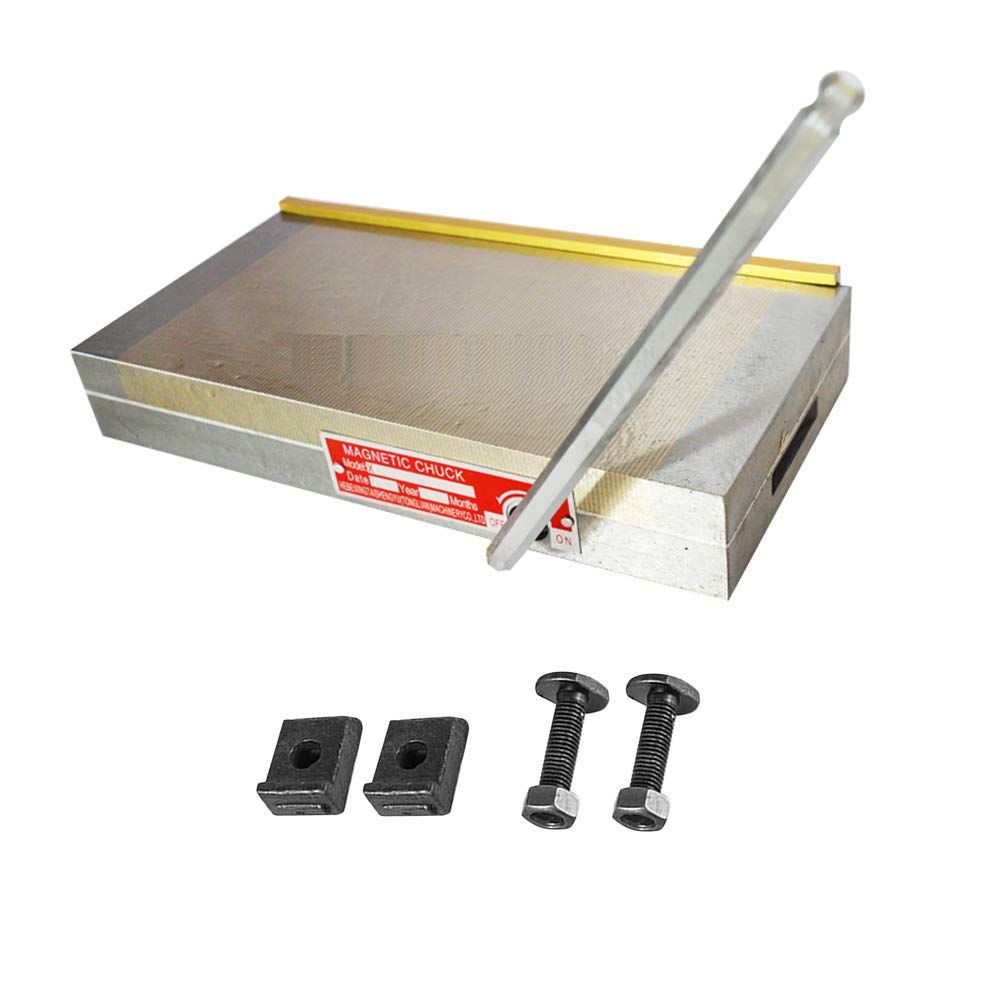

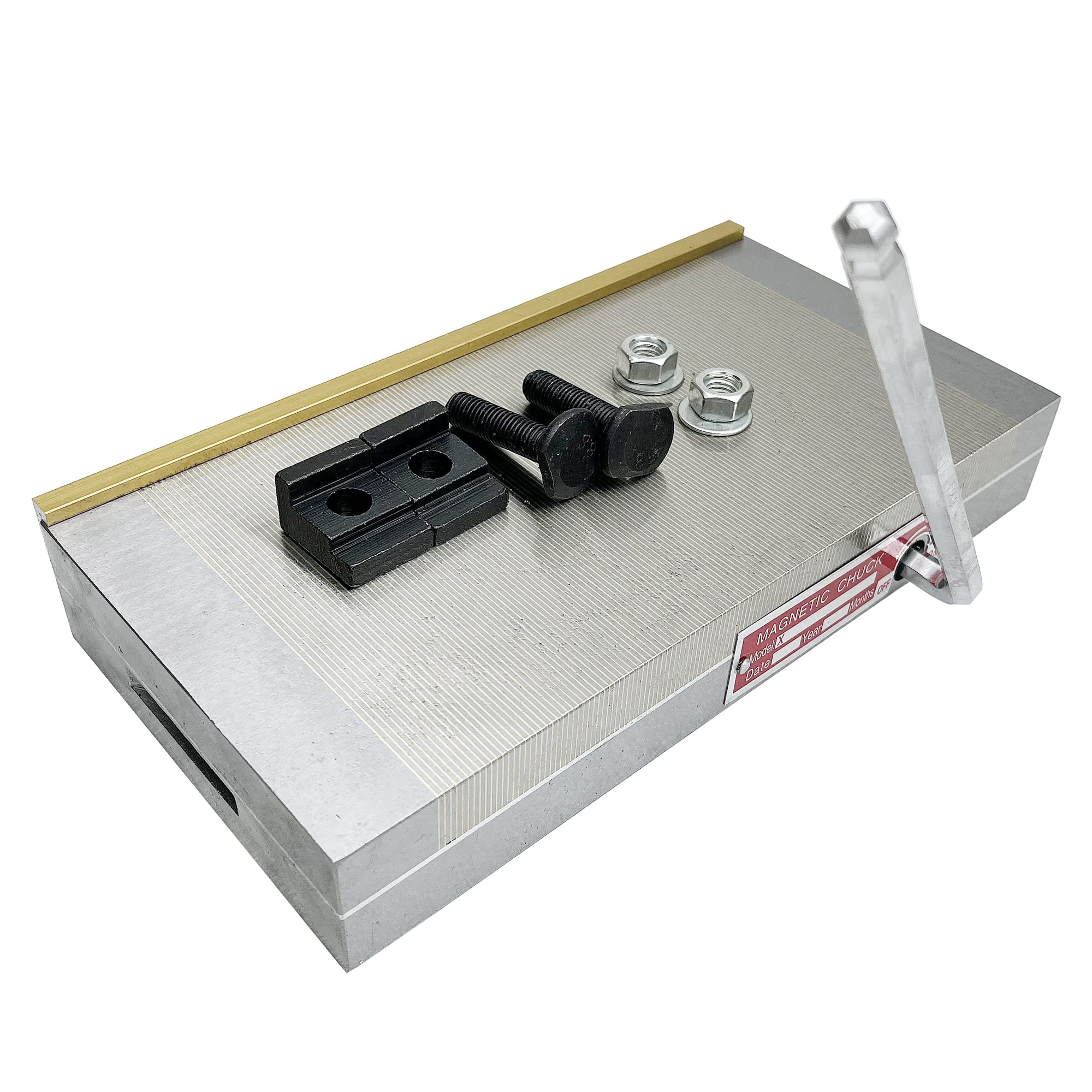

【Set of Accessories】Two screws, two pressing plates and a stainless steel handle provided in the package. The magnetic pole pitch is 1.5+0.5 mm and the magnetic force spread evenly.

【Widely Application】Strong dense pole permanent magnet sucker can be used for processing various magnetic conduction workpieces. For surface grinder, tool grinder, WEDM, sparks machine and other applications. High-performance magnetic steel disk, with suction, almost no remanence.
